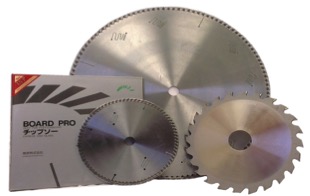

Rip Saw/Optimizer

It appears you don't have a PDF plugin for this browser. You can click here to download the PDF file.

Downloads

RAIMANN GLUE JOINT RIP (80mm bore, 2 keyways + 6 pinholes)
300MM X 2.8 (.110) plate, 4.0 (.157) kerf, 28T, TCG
300MM X 2.0 (.080) plate, 2.8 (.110) kerf, 28T, TCG thin kerf blade
300MM X 2.8 (.110) plate, 4.0 (.157) kerf, 36T, TCG
300MM X 2.0 (.080) plate, 2.8 (.110) kerf, 36T, TCG thin kerf blade
300MM X 2.8 (.110) plate, 4.0 (.157) kerf, 48T, TCG
300MM X 2.0 (.080) plate, 2.8 (.110) kerf, 48T, TCG thin kerf blade
MEREEN-JOHNSON GLUE JOINT RIP (3-1/8” bore) add $10.00 for keyways
12” X 2.8 (.110) X 4.0 (.157), 3-1/8” BORE, 36 TEETH GLUE JOINT TCG
12” X 2.2 (.088) X 3.2 (.126), 3-1/8” BORE, 36 TEETH GLUE JOINT TCG
12” X .050” X .078” X 3.125” BORE, 36 TEETH, FTG THIN KERF (minimum 6pc quantity)
[ KANEFUSA ] 12” X .083” X .126” X 3.125” BORE, 36 TEETH, TCG BOARD PRO
SCM
12” X 2.8 (.110) X 4.0 (.157), 70MM BORE, 36 TEETH, GLUE JOINT TCG
TRIM & CUT-OFF SAWS
[ KANEFUSA ] 12” dia, .118” kerf, .095” plate, 120 teeth, Hi Max Chrome, 1” or 1-1/4” bore

LASER DIODE (GUIDE LINE LIGHTS) CUSTOMIZED FOR INDIVIDUAL APPLICATION. CONTACT US FOR QUOTE.

CUSTOM SAW BLADES
  • CARBIDE TIPPED
  • PCD (DIAMOND TIPPED)
  • HSS
  • THIN KERF / THIN RIM
  • COMPOSITES / WOOD / PLASTIC / METAL
  • CONTACT US FOR A QUOTE!
rip saw blades

PRETINNED C-3 CARBIDE SAW TIPS

Carbide Saw Tips
PART NO.L (inch)W (inch)T (inch)αβϒ
CWD71850.3120.1850.09330°60°
CWG71850.3750.1850.12530°60°
CWG72000.3750.2000.12530°60°

OTHER SIZES / GRADES ARE AVAILABLE UPON REQUEST
