Knifestock - HSS

It appears you don't have a PDF plugin for this browser. You can click here to download the PDF file.

Downloads

Centric superior quality corrugated knifestock for every application

Centric HSS Corrugated Knifestock:

Premium M2 knifestock

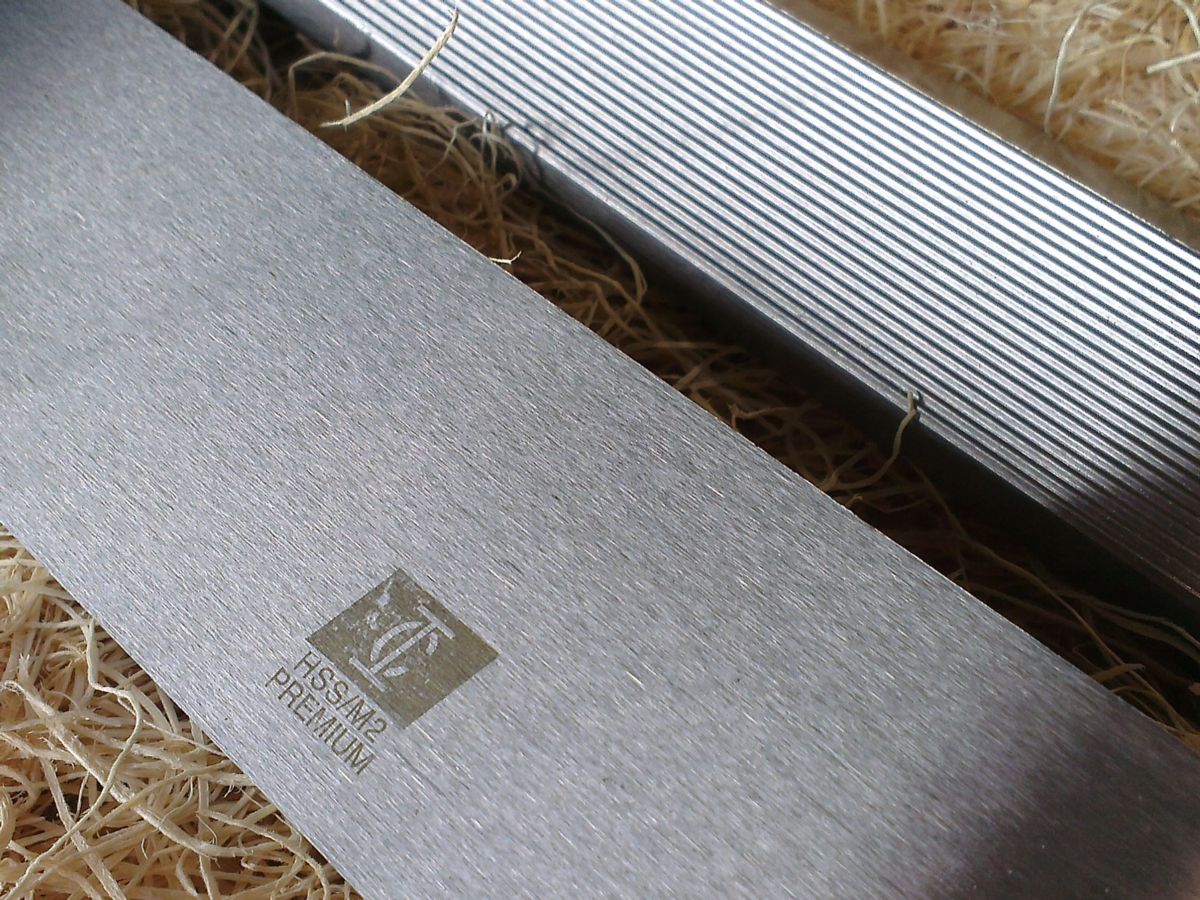

Premium M2:
Our most popular HSS M2, horizontally ground which ensures bar to bar consistency, quality and hardness. Strict tolerance kept on all dimensions. Perfect for jointing
Premium M2 knifestock

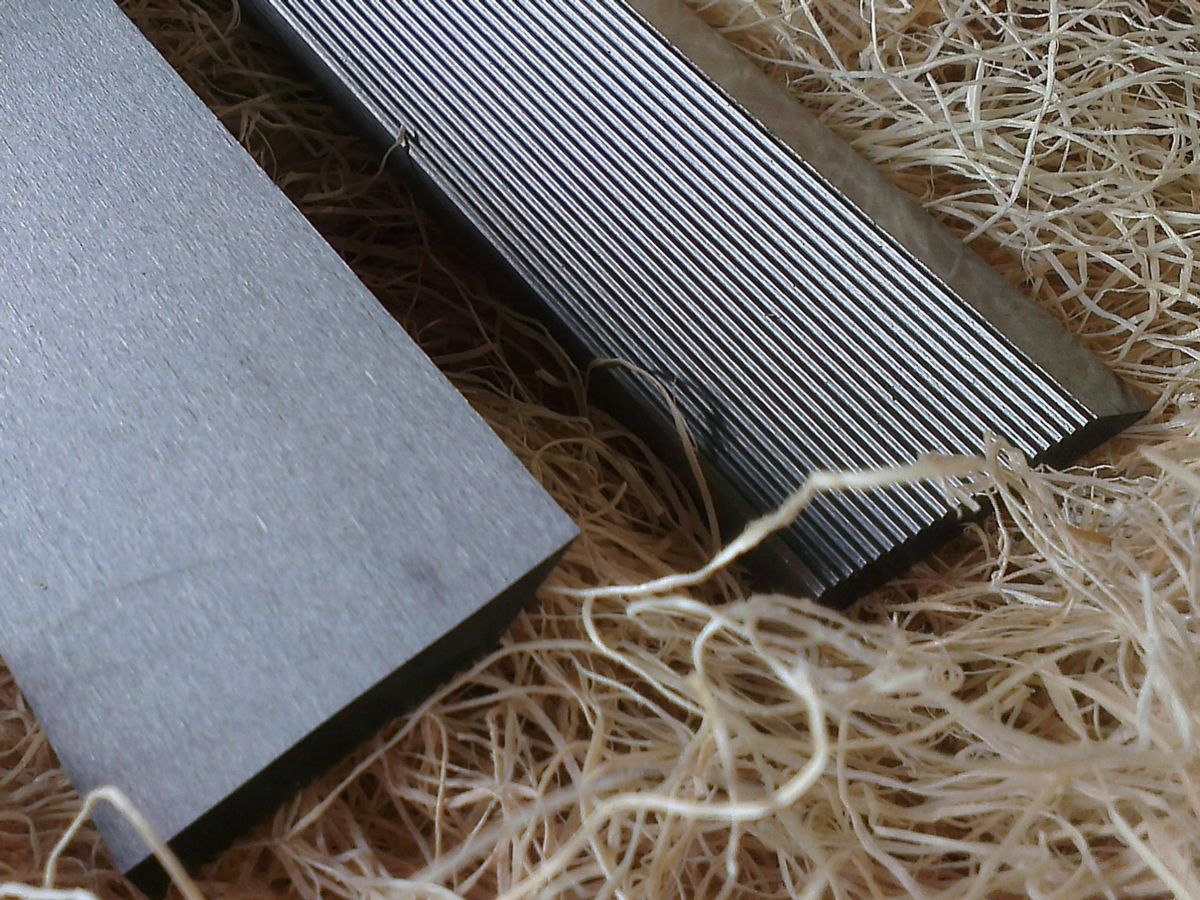

Standard M2:
High quality, competitively priced, horizontally ground, German base metal
Premium M2 knifestock

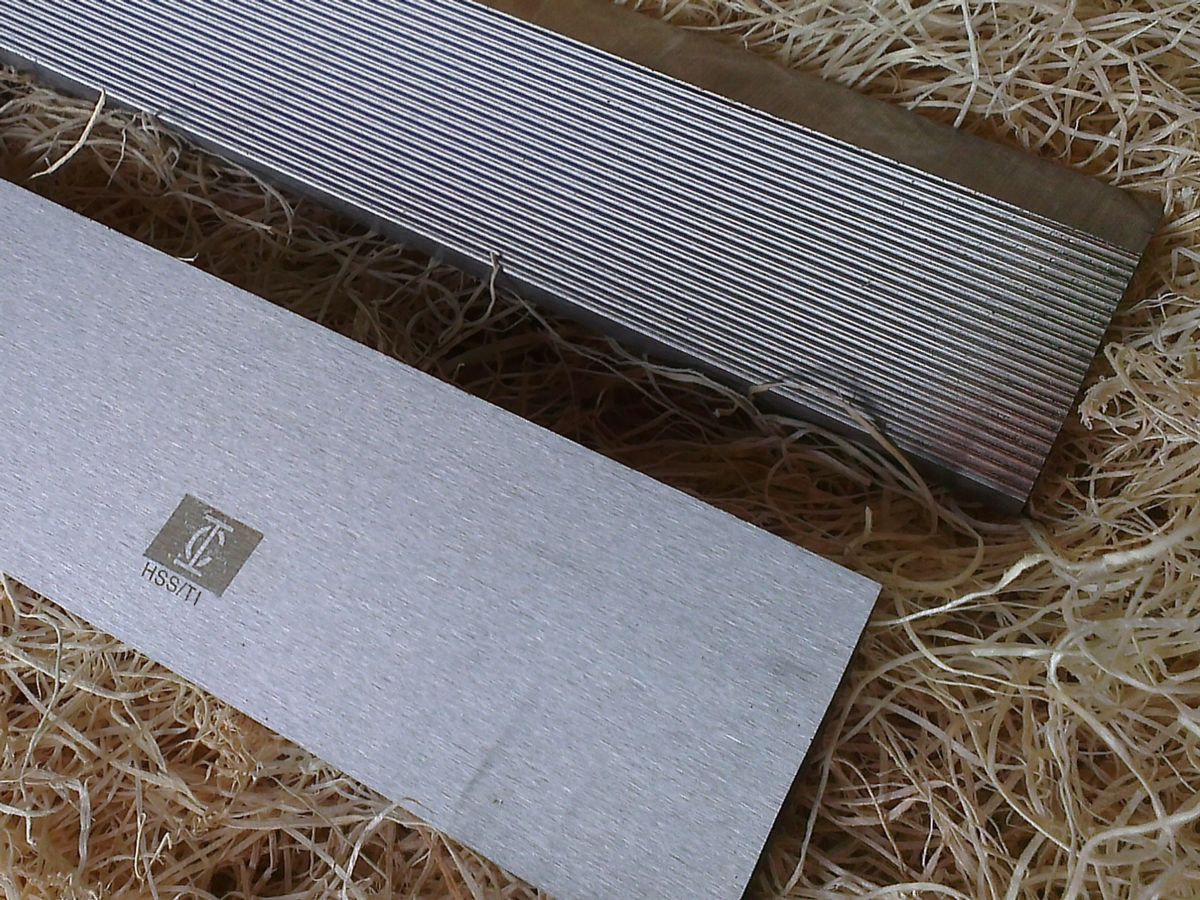

T1:
18% Tungsten, true T1, longer run time, German base metal
Premium M2 knifestock

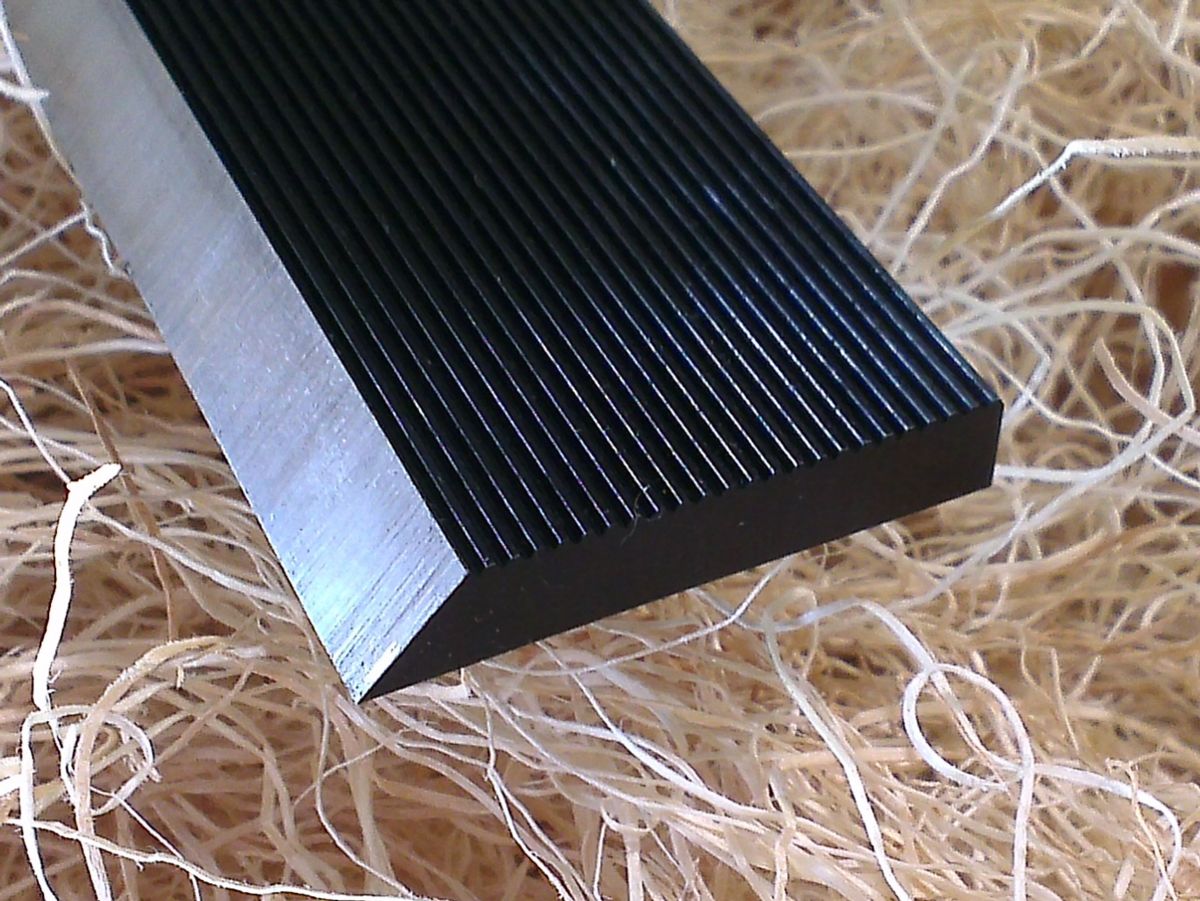

BlackBack:
Economy grade opti-steel, black oxide coated for improved life & reduced pitch build-up
Premium M2 knifestock

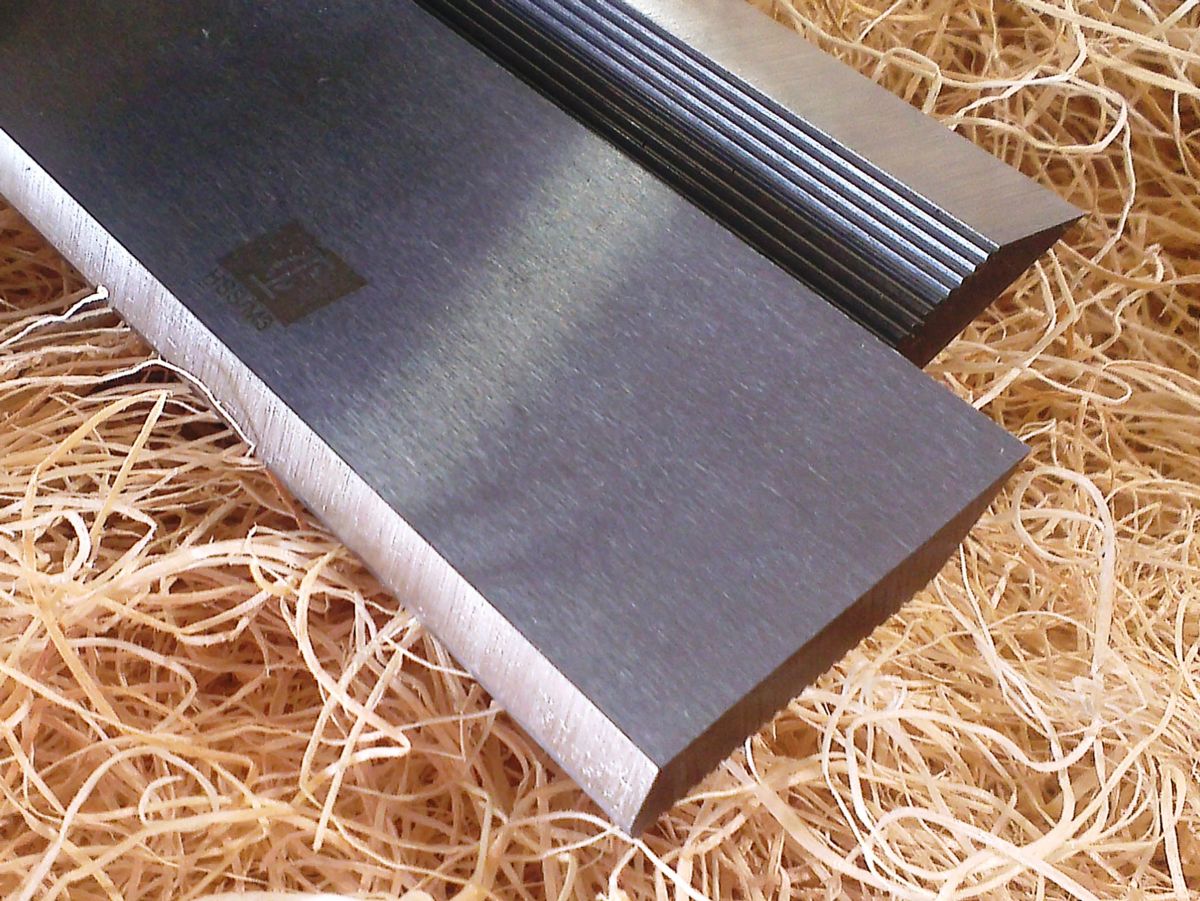

M3:
European-Style back bevel, horizontally ground
Premium M2 knifestock

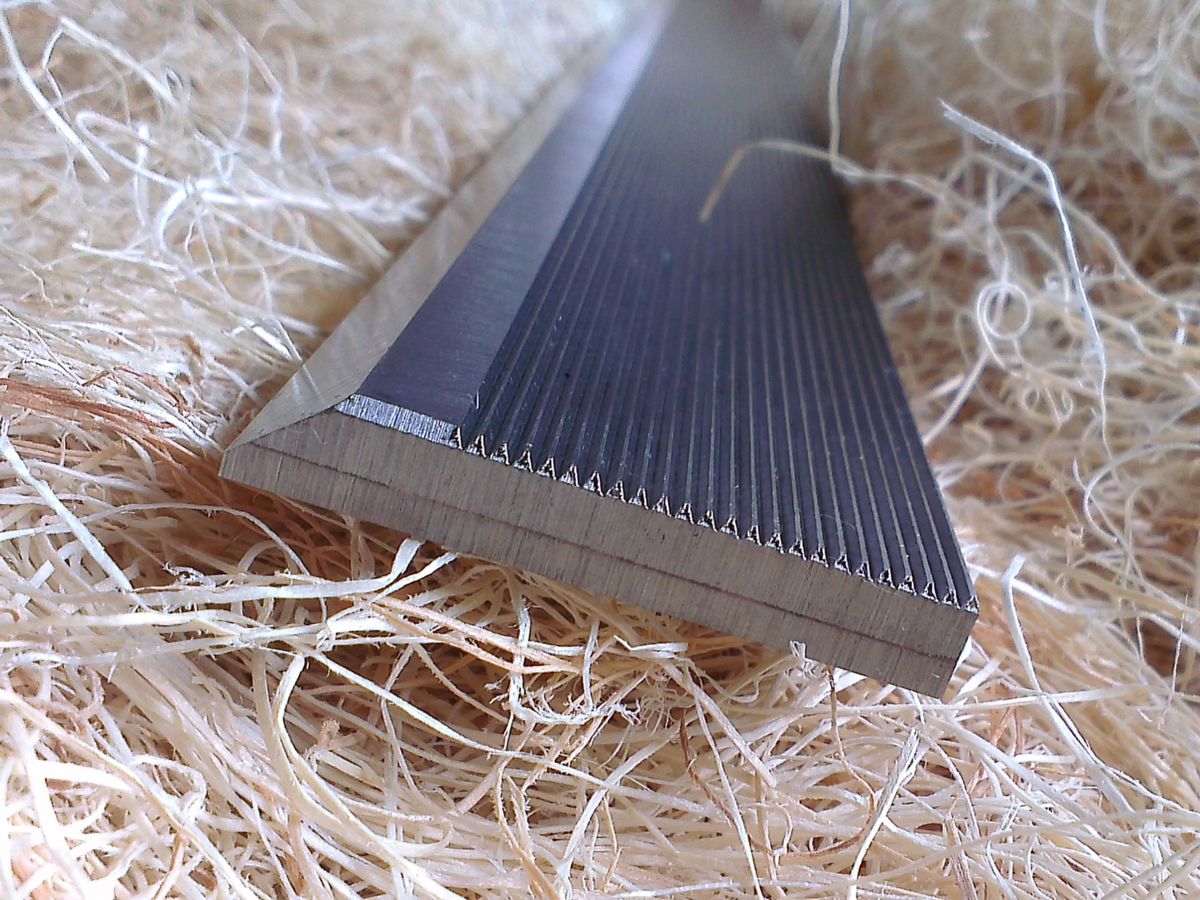

M42:
Wafer inlay of higher cobalt & tungsten M42 steel, 65-67 Rockwell C hardness
Premium M2 knifestock

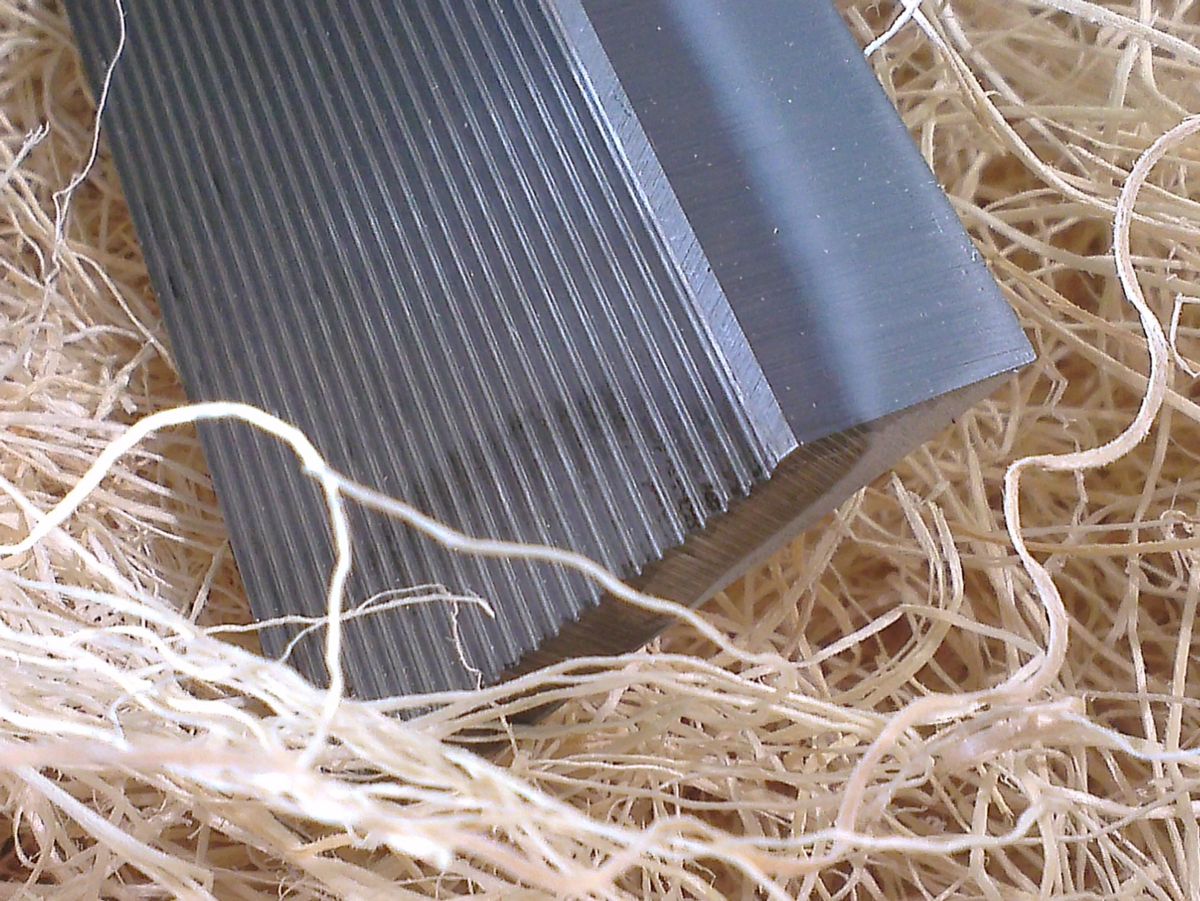

DiamondBack:
Premium HSS M2 with a diamond enhanced process for difficult applications such as mineral content, glue lines, and long runs in hardwoods. Leaves less-pronounced knife mark finish. Perfect for jointing. Grinds like M2 with a regular vitrified grinding wheel. Debur only with CMS rubber stick.

Centric supior quality corrugated knifestock for every applications.

5/16" Thickness
1" x 5/16" x 25" (filler stock)
1.25" x 5/16" x 25"
1.50" x 5/16" x 25"
1.75" x 5/16" x 25"
2.00" x 5/16" x 25"
2.25" x 5/16" x 25"
2.375" x 5/16" x 25"
2.50" x 5/16" x 25"
2.75" x 5/16" x 25"
3.00" x 5/16" x 25"
3.25" x 5/16" x 25"
3.50" x 5/16" x 25"

1/4" Thickness
1" x 1/4" x 25" (filler stock)
1.25" x 1/4" x 25"
1.50" x 1/4" x 25"
1.75" x 1/4" x 25"
2.00" x 1/4" x 25"
2.25" x 1/4" x 25"
2.375" x 1/4" x 25"
2.50" x 1/4" x 25"

Centric knife stock can be used with our own corrugated cutter heads or in any similar wood moulder application. Customers with Weinig, Diehl, Wadkin, Leadermac, SCM moulders choose to run Centric high speed steel knives for the consistent quality and value.

Economy M2 HSS Planer Knives:

  • Smooth, non-corrugated knives for planers
  • M2 grade high speed steel
  • Choose 1/8" or 5/32" thickness
  • 1-1/2" , 1-3/4", or 2" knife widths
  • Cut to any length and sold by the inch


Premium M2 HSS Planer Knives (Made in the USA):

  • Smooth, non-corrugated knives for planers
  • Top-tier M2 grade high speed steel ensures consistency every time
  • Choose 1/8" or 5/32" thickness
  • Standard 35 deg bevel unless otherwise noted
  • Additional knife width size options compared to ecomonmy planer knives

Williams & Hussey® M2 Knives:

  • Smooth or corrugated knives available
  • 25" bar lengths, with standard Williams & Hussey hole pattern
  • Knife widths from 1-3/4" up to 2-1/2"
  • 3/16" thickness or 1/4" thickness

HSS Bevel Edge Shaper Steel (with Lock Edge):

  • Special lock-edge design on one side of knife
  • Choose from either M2 or AKM knife steel
  • 25" bar lengths
  • 1/4" thickness or 5/16" thickness
  • Knife widths from 3/4" up to 3-1/4"

(sizes under 1" width are not able to notch for lock edge)
