Feed Rollers - Steel

It appears you don't have a PDF plugin for this browser. You can click here to download the PDF file.

Downloads

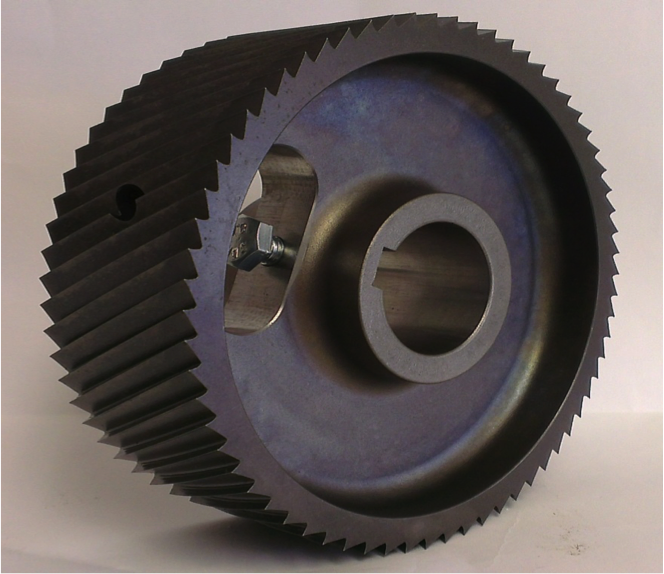

Sharpening Steel Feed Rollers

Centric Steel Feed Rollers can be Sharpened Again & Again & Again!!

  • Rollers are hardened saw tooth style, allowing for re-sharpening
  • Wider rollers are webbed-out for weight relief
  • Window design allows for easier access to set bolt
  • Each roller includes a set screw/bolt mount
  • Choose from shaft mount or bolt-on design (depending on moulder position)
  • Custom sizes & knurled rollers available - contact us for a quote.

Catalog Sizes:
Shaft mount feed roller
(140mm OD, 35mm bore & 10mm keyway)......... 3/8", 1/2", 5/8", 3/4", 2" wide

Bolt-on feed roller
(140mm OD for center moulder position).............1/4", 3/8", 10mm, 1/2", 5/8", 3/4" wide


Economy Steel Feed Rollers:

  • Rollers are made out of low-cost cast iron
  • Chrome plated for improved wear resistance
  • Replace once dull (not re-sharpenable)
  • Each roller includes a set screw/bolt mount
  • Choose from shaft mount or bolt-on design (depending on moulder position)
  • 3 knurl types : standard, fine, aggressive (wet timber roller)

Catalog Sizes:
Shaft mount feed roller
(140mm OD, 35mm bore & 10mm keyway)............ 10mm, 20mm, 25mm, 40mm, 50mm wide

Bolt-on feed roller
(140mm OD for center moulder position).............10mm, 15mm, 20mm, 25mm wide
