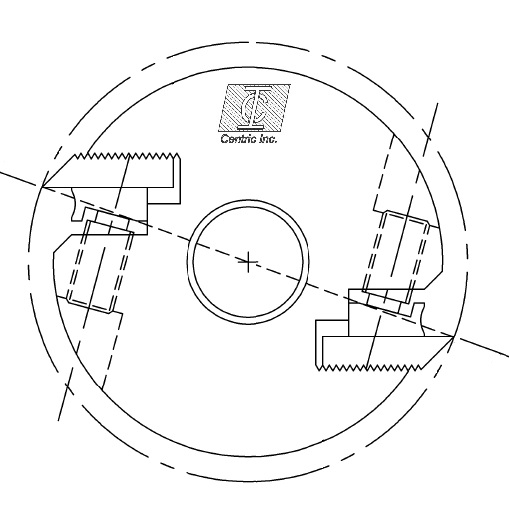

Corrugated Heads - Straight Bore

It appears you don't have a PDF plugin for this browser. You can click here to download the PDF file.

Downloads

Designed for Weinig, SCM, Diehl, Leadermac, Wadkin non-jointed applications. Use with corrugated knifestock to machine any standard or custom moulding.

Centric straight bore shaper/moulder heads come with allen set screws (choose either standard or metric). Square head screws also available.

Shaper Cutterheads (2 KNIFE, CORRUGATED)

  • 1-1/4" BORE & SMALLER,
  • CORRUGATED, 20° CUT ANGLE
  • 2 KNIFE OR 4 KNIFE DESIGN

Available Cut Lenght Sizes: 2" (50MM), 4" (100MM), 6" (150MM)

  • 2¾" DIAMETER X ¾" BORE X 2" WIDE, 15 DEG
  • 2¾" DIAMETER X ¾" BORE X 3" WIDE, 15 DEG
  • 3½" DIAMETER X 1" BORE X 2" WIDE, 20 DEG
  • 3½" DIAMETER X 1" BORE X 3" WIDE, 20 DEG

122MM (4.8") DIAMETER MOULDER HEADS

  • 1.5" OR 40MM BORE
  • CORRUGATED
  • 12° / 20° / DUAL CUT ANGLE
  • 2 KNIFE OR 4 KNIFE DESIGN
Available Cut Length Sizes:
1.5" (40MM)
2" (50MM)
2.25" (60MM)
4" (100MM)
5" (130MM)
6" (150MM)
7" (180MM)
9" (230MM)
9.5" (240MM)

137MM (5.4") DIAMETER MOULDER HEADS

  • 4 KNIFE
  • 1-13/16" or 2-1/8" BORE
  • CORRUGATED
  • 12° / 20° / DUAL CUT ANGLE
  • ALUMINUM OR STEEL BODY DESIGN
Available Cut Length Sizes:
1.5" (40MM)
2" (50MM)
2.25" (60MM)
3" (76MM)
4" (100MM)
5" (130MM)
6" (150MM)
7" (180MM)
8" (200MM)
9" (230MM)
9.5" (240MM)
