Corrugated Heads - Hydro-Loc

It appears you don't have a PDF plugin for this browser. You can click here to download the PDF file.

Downloads

Centric Hydraulic locking heads allow for concentric positioning on the spindle, maintaining best-level run out.

Quantity discounts are available.

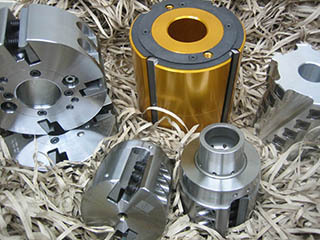

Centric Hydro-Loc Moulder Heads

137mm (5.4") or 150mm (5.9”) Body Diameter
10°, 12° & 20° Cutting Angle
1-13/16" or 2-1/8" Bore Diameter
Corrugated
Includes Hardened Sleeve
Allen or Square Head Bolts
Choose from 4 / 6 / 8 Knife Design

Catalog Sizes - Cut length:
2.25" (60mm)
4" (100mm
6" (150mm)
7" (180mm)
9" (230mm)
9.5" (240mm)

Contact us for a quote on any custom size


Centric Hydro-Loc Hubbed Heads

w/10mm Hub for Axial Constant
150mm (5.9”) Body Diameter for 4 & 6 knife design
163mm (6.4”) Body Diameter for 8 knife design
10°, 12° & 20° Cutting Angle
1-13/16" or 2-1/8" Bore Diameter
Corrugated
Includes Hardened Sleeve
Allen or Square Head Bolts
Choose from 4 / 6 / 8 Knife Design

Catalog Sizes - Cut length:
2.25" (60mm)
4" (100mm
6" (150mm)
7" (180mm)
9" (230mm)
9.5" (240mm)

Contact us for a quote on any custom size


Centric Self-Lock Hydro Heads

No Grease Gun Required!!
150mm (5.9”) Body Diameter
1-13/16" Bore Diameter
10°, 12° & 20° Cutting Angle
Corrugated
Allen or Square Head Bolts
Includes Hardened Sleeve

Catalog Sizes - Cut length:
2.25" (60mm)
4" (100mm
6" (150mm)

Contact us for a quote on any custom size
